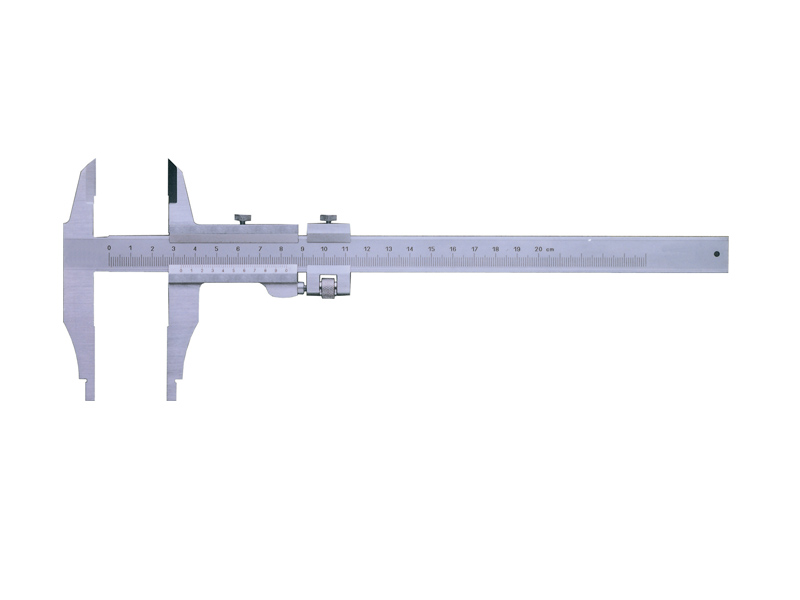

III型闭式游标卡尺

主要特点

两种形状的外测量面适合于精确的外测量
上爪尖刃形，可直接在工件上划线。
圆弧形内测量面适合于精确的内测量
其中长量爪用于测量通常情况难以达到的位置
带微调装置，不带测深杆。
不锈钢、全淬火，镀铬，激光刻线。

技术参数

测量范围		货号	游标读数值	允许误差	爪长
O.D	I.D	货号	游标读数值	允许误差	爪长
0-300mm	10-300mm	59-301AA	0.02mm	±0.04mm	60mm
		59-301AB	0.02mm	±0.06mm	90mm
	20-300mm	59-301AC	0.02mm	±0.08mm	100mm
		59-301AD	0.02mm	±0.10mm	125mm
	10-300mm	59-301BA	0.05mm	±0.06mm	60mm
		59-301BB	0.05mm	±0.10mm	90mm
	20-300mm	59-301BC	0.05mm	±0.13mm	100mm
		59-301BD	0.05mm	±0.16mm	125mm
0-400mm	20-400mm	59-401AA	0.02mm	±0.05mm	100mm
		59-401AB	0.02mm	±0.05mm	125mm
		59-401AC	0.02mm	±0.08mm	150mm
		59-401BA	0.05mm	±0.07mm	100mm
		59-401BB	0.05mm	±0.07mm	125mm
		59-401BC	0.05mm	±0.10mm	150mm
0-500mm	20-500mm	59-501AA	0.02mm	±0.05mm	100mm
		59-501AB	0.02mm	±0.05mm	150mm
		59-501AC	0.02mm	±0.08mm	200mm
		59-501BA	0.05mm	±0.07mm	100mm
		59-501BB	0.05mm	±0.08mm	150mm
		59-501BC	0.05mm	±0.10mm	200mm
0-600mm	20-600mm	59-601AA	0.02mm	±0.05mm	100mm
		59-601AB	0.02mm	±0.10mm	150mm
		59-601AC	0.02mm	±0.14mm	200mm
		59-601BA	0.05mm	±0.08mm	100mm
		59-601BB	0.05mm	±0.13mm	150mm
		59-601BC	0.05mm	±0.16mm	200mm
0-800mm	20-800mm	59-801AA	0.02mm	±0.06mm	150mm
		59-801AB	0.02mm	±0.11mm	200mm
		59-801AC	0.02mm	±0.15mm	250mm
		59-801BA	0.05mm	±0.09mm	150mm
		59-801BB	0.05mm	±0.14mm	200mm
		59-801BC	0.05mm	±0.18mm	250mm
0-1000mm	20-1000mm	59-102AA	0.02mm	±0.07mm	150mm
		59-102AB	0.02mm	±0.11mm	200mm
		59-102AC	0.02mm	±0.18mm	250mm
		59-102AD	0.02mm	±0.24mm	300mm
		59-102BA	0.05mm	±0.10mm	150mm
		59-102BB	0.05mm	±0.14mm	200mm
		59-102BC	0.05mm	±0.20mm	250mm
		59-102BD	0.05mm	±0.26mm	300mm
0-1500mm	20-1500mm	59-152AA	0.02mm	±0.11mm	150mm
		59-152AB	0.02mm	±0.13mm	200mm
		59-152AC	0.02mm	±0.17mm	250mm
		59-152AD	0.02mm	±0.25mm	300mm
		59-152BA	0.05mm	±0.16mm	150mm
		59-152BB	0.05mm	±0.18mm	200mm
		59-152BC	0.05mm	±0.22mm	250mm
		59-152BD	0.05mm	±0.29mm	300mm
0-2000mm	20-2000mm	59-202AA	0.02mm	±0.14mm	150mm
		59-202AB	0.02mm	±0.14mm	200mm
		59-202AC	0.02mm	±0.20mm	250mm
		59-202AD	0.02mm	±0.30mm	300mm
		59-202BA	0.05mm	±0.20mm	150mm
		59-202BB	0.05mm	±0.20mm	200mm
		59-202BC	0.05mm	±0.26mm	250mm
		59-202BD	0.05mm	±0.36mm	300mm
0-2500mm	20-2500mm	59-252AA	0.02mm	±0.22mm	150mm
		59-252AB	0.02mm	±0.22mm	200mm
		59-252AC	0.02mm	±0.28mm	250mm
		59-252AD	0.02mm	±0.34mm	300mm
		59-252BA	0.05mm	±0.24mm	150mm
		59-252BB	0.05mm	±0.24mm	200mm
		59-252BC	0.05mm	±0.30mm	250mm
		59-252BD	0.05mm	±0.37mm	300mm
0-3000mm	20-3000mm	59-302AA	0.02mm	±0.26mm	150mm
		59-302AB	0.02mm	±0.26mm	200mm
		59-302AC	0.02mm	±0.35mm	250mm
		59-302AD	0.02mm	±0.35mm	300mm
		59-302BA	0.05mm	±0.31mm	150mm
		59-302BB	0.05mm	±0.31mm	200mm
		59-302BC	0.05mm	±0.37mm	250mm
		59-302BD	0.05mm	±0.37mm	300mm
0-4000mm	20-4000mm	59-402AA	0.02mm	±0.34mm	200mm
		59-402AB	0.02mm	±0.38mm	250mm
		59-402AC	0.02mm	±0.40mm	300mm
		59-402BA	0.05mm	±0.40mm	200mm
		59-402BB	0.05mm	±0.45mm	250mm
		59-402BC	0.05mm	±0.50mm	300mm
