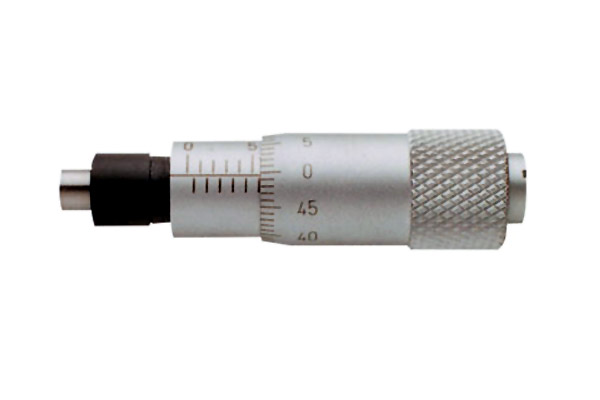

Micrometer Heads
Feature
Used on machine tools, fixtures, special gauges, tooling, and other equipment where micrometer accuracy in setting and adjustment is required.
Carbide-tipped measuring faces (excluding spherical heads).
Non-rotating spindle and rotary spindle are optional.
Flat head and spherical head are optional.
With or without screw
With or without lock nut.
With or without ratchet stop..
Ratchet stop can keep constant measuring force.
Technology Parameter
Code Range Resolution Measuring face Fix Device
31-652F 0-6.5mm 0.01mm Flat Cylinder
31-133F 0-13mm 0.01mm Flat Cylinder
31-153F 0-15mm 0.01mm Flat Cylinder
31-253F 0-25mm 0.01mm Flat Cylinder
31-503F 0-50mm 0.01mm Flat Cylinder
31-652S 0-6.5mm 0.01mm Spherical Cylinder
31-133S 0-13mm 0.01mm Spherical Cylinder
31-153S 0-15mm 0.01mm Spherical Cylinder
31-253S 0-25mm 0.01mm Spherical Cylinder
31-503S 0-50mm 0.01mm Spherical Cylinder
31-652FS 0-6.5mm 0.01mm Flat Cylinder & Screw
31-133FS 0-13mm 0.01mm Flat Cylinder & Screw
31-153FS 0-15mm 0.01mm Flat Cylinder & Screw
31-253FS 0-25mm 0.01mm Flat Cylinder & Screw
31-503FS 0-50mm 0.01mm Flat Cylinder & Screw
31-652SS 0-6.5mm 0.01mm Spherical Cylinder & Screw
31-133SS 0-13mm 0.01mm Spherical Cylinder & Screw
31-153SS 0-15mm 0.01mm Spherical Cylinder & Screw
31-253SS 0-25mm 0.01mm Spherical Cylinder & Screw
31-503SS 0-50mm 0.01mm Spherical Cylinder & Screw
