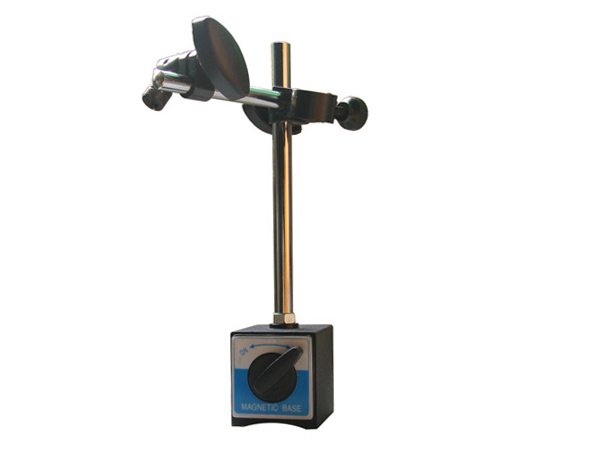

Magnetic Stand with Fine Adjustment
Feature
Widely used in the manufacturing industry.
Used for clamping dial indicators, micron dial indicators and dial test indicators , etc. It can scribe on workpiece if it’s attached with a scriber.
Can be adjusted to any angle needed. It’s an ideal checking device.
This strong stand is with ON/OFF switch
Technology Parameter
Code Magnetic force Stand size (mm) Main stem (mm) Assistant stem (mm) Weight
Height Width Length Length Diameter Length Diameter
54-600 60kg/588N 55 50 63 176 12 150 10 1.5kg
54-800 80kg/784N 55 50 69 176 12 150 10 1.5kg
