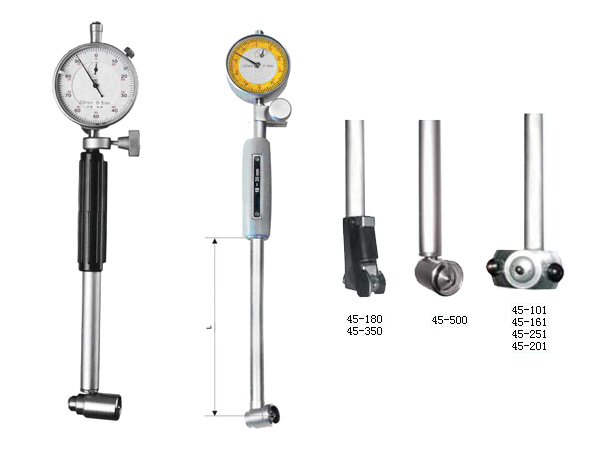

Dial Bore Gauge
Feature
Used for internal measurement.
Stainless steel contacts hardened.
With changeable contacts, wide measuring range.
With dial indicator
Technology Parameter
Code Range (mm) Grad. (mm) L (mm) Accuracy (mm)
45-180 10-18mm 0.01 45 12μm
45-350 18-35mm 0.01 75 15μm
45-500 35-50mm 0.01 80 15μm
45-101 50-100mm 0.01 200 18μm
45-161 50-160mm 0.01 200 18μm
45-251 160-250mm 0.01 200 18μm
45-201 20-200mm 0.01 300 18μm
