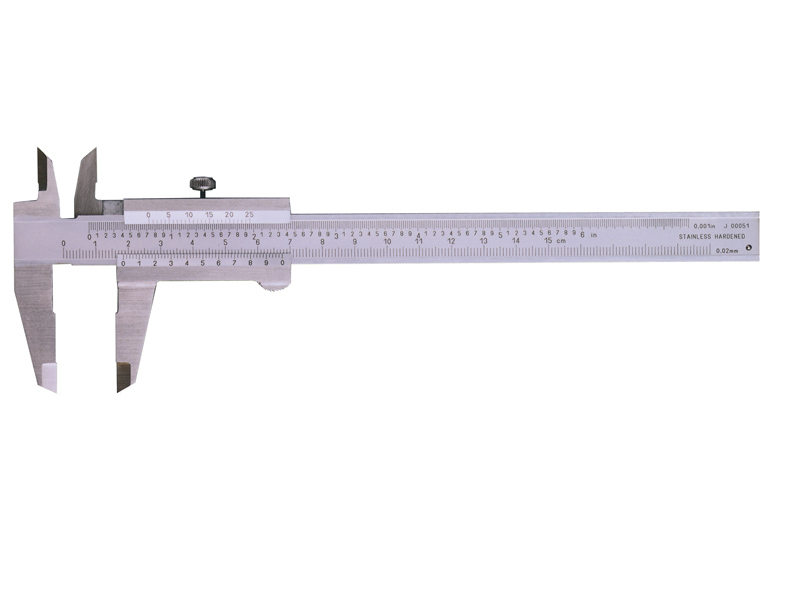

Vernier Calipers (Type II, Mono-block vernier) |
|
Feature
Both upper & lower jaws are knife edge.
Inside readings can be read directly from the indicated reading when measuring the inside diameter with upper jaws,
Do not need to add the nib width to the indicated reading.
Without depth bar.
Can measure outside diameter (O.D), inside diameter (I.D), and steps.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy. |
Technology Parameter
| Order No. |
Measuring Range |
Vernier reading |
Permissible Error |
Remarks |
| 57-151A |
0-150mm |
0.02mm |
±0.03mm |
Without depth bar |
| 57-201A |
0-200mm |
0.02mm |
±0.03mm |
| 57-301A |
0-300mm |
0.02mm |
±0.04mm |
| 57-501A |
0-500mm |
0.02mm |
±0.05mm |
| 57-601A |
0-600mm |
0.02mm |
±0.05mm |
| 57-151B |
0-150mm |
0.05mm |
±0.05mm |
| 57-201B |
0-200mm |
0.05mm |
±0.05mm |
| 57-301B |
0-300mm |
0.05mm |
±0.06mm |
| 57-501B |
0-500mm |
0.05mm |
±0.07mm |
| 57-601B |
0-600mm |
0.05mm |
±0.08mm |
| 57-151AA |
0-150mm |
0.02/.001" |
±0.03mm |
| 57-201AA |
0-200mm |
0.02/.001" |
±0.03mm |
| 57-301AA |
0-300mm |
0.02/.001" |
±0.04mm |
| 57-501AA |
0-500mm |
0.02/.001" |
±0.05mm |
| 57-601AA |
0-600mm |
0.02/.001" |
±0.05mm |
| 57-151BB |
0-150mm |
0.05/1/128" |
±0.05mm |
| 57-201BB |
0-200mm |
0.05/1/128" |
±0.05mm |
| 57-301BB |
0-300mm |
0.05/1/128" |
±0.06mm |
| 57-501BB |
0-500mm |
0.05/1/128" |
±0.07mm |
| 57-601BB |
0-600mm |
0.05/1/128" |
±0.08mm | |
|
