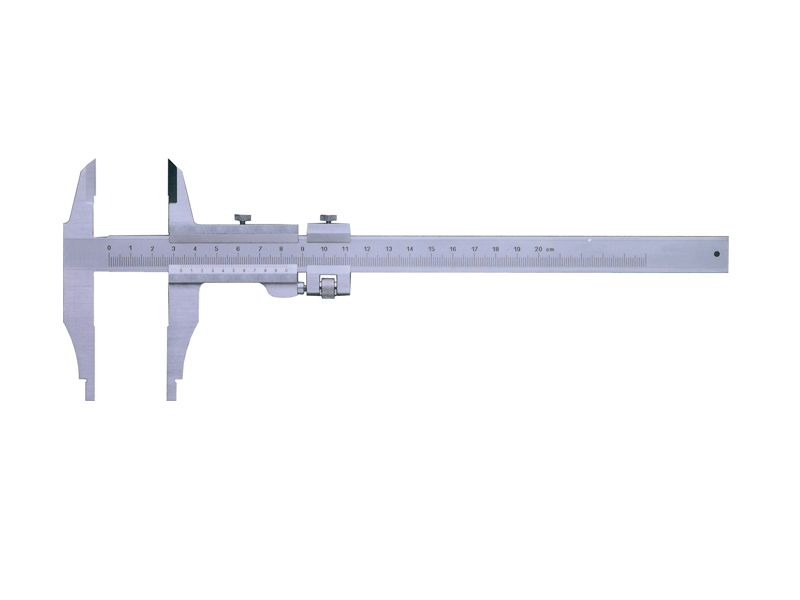

Vernier Calipers (Type III, Mono-block Vernier )
Feature
Two types of outside jaws are fit for accurate outside measurement.
Knife edge and sharp upper jaws can scribe directly on the workpiece.
The radiused measuring faces are fit for accurate inside measurement.
Long jaws for measuring hard-to-reach portions.
With fine adjustment , but without depth bar.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy.
Technology Parameter
Measuring Range Code Vernier Reading Permissible Error Jaw Length
O.D I.D
0-300mm 10-300mm 59-301AA 0.02mm ±0.04mm 60mm
    59-301AB 0.02mm ±0.06mm 90mm
  20-300mm 59-301AC 0.02mm ±0.08mm 100mm
    59-301AD 0.02mm ±0.10mm 125mm
  10-300mm 59-301BA 0.05mm ±0.06mm 60mm
    59-301BB 0.05mm ±0.10mm 90mm
  20-300mm 59-301BC 0.05mm ±0.13mm 100mm
    59-301BD 0.05mm ±0.16mm 125mm
0-400mm 20-400mm 59-401AA 0.02mm ±0.05mm 100mm
    59-401AB 0.02mm ±0.05mm 125mm
    59-401AC 0.02mm ±0.08mm 150mm
    59-401BA 0.05mm ±0.07mm 100mm
    59-401BB 0.05mm ±0.07mm 125mm
    59-401BC 0.05mm ±0.10mm 150mm
0-500mm 20-500mm 59-501AA 0.02mm ±0.05mm 100mm
    59-501AB 0.02mm ±0.05mm 150mm
    59-501AC 0.02mm ±0.08mm 200mm
    59-501BA 0.05mm ±0.07mm 100mm
    59-501BB 0.05mm ±0.08mm 150mm
    59-501BC 0.05mm ±0.10mm 200mm
0-600mm 20-600mm 59-601AA 0.02mm ±0.05mm 100mm
    59-601AB 0.02mm ±0.10mm 150mm
    59-601AC 0.02mm ±0.14mm 200mm
    59-601BA 0.05mm ±0.08mm 100mm
    59-601BB 0.05mm ±0.13mm 150mm
    59-601BC 0.05mm ±0.16mm 200mm
0-800mm 20-800mm 59-801AA 0.02mm ±0.06mm 150mm
    59-801AB 0.02mm ±0.11mm 200mm
    59-801AC 0.02mm ±0.15mm 250mm
    59-801BA 0.05mm ±0.09mm 150mm
    59-801BB 0.05mm ±0.14mm 200mm
    59-801BC 0.05mm ±0.18mm 250mm
0-1000mm 20-1000mm 59-102AA 0.02mm ±0.07mm 150mm
    59-102AB 0.02mm ±0.11mm 200mm
    59-102AC 0.02mm ±0.18mm 250mm
    59-102AD 0.02mm ±0.24mm 300mm
    59-102BA 0.05mm ±0.10mm 150mm
    59-102BB 0.05mm ±0.14mm 200mm
    59-102BC 0.05mm ±0.20mm 250mm
    59-102BD 0.05mm ±0.26mm 300mm
0-1500mm 20-1500mm 59-152AA 0.02mm ±0.11mm 150mm
    59-152AB 0.02mm ±0.13mm 200mm
    59-152AC 0.02mm ±0.17mm 250mm
    59-152AD 0.02mm ±0.25mm 300mm
    59-152BA 0.05mm ±0.16mm 150mm
    59-152BB 0.05mm ±0.18mm 200mm
    59-152BC 0.05mm ±0.22mm 250mm
    59-152BD 0.05mm ±0.29mm 300mm
0-2000mm 20-2000mm 59-202AA 0.02mm ±0.14mm 150mm
    59-202AB 0.02mm ±0.14mm 200mm
    59-202AC 0.02mm ±0.20mm 250mm
    59-202AD 0.02mm ±0.30mm 300mm
    59-202BA 0.05mm ±0.20mm 150mm
    59-202BB 0.05mm ±0.20mm 200mm
    59-202BC 0.05mm ±0.26mm 250mm
    59-202BD 0.05mm ±0.36mm 300mm
0-2500mm 20-2500mm 59-252AA 0.02mm ±0.22mm 150mm
    59-252AB 0.02mm ±0.22mm 200mm
    59-252AC 0.02mm ±0.28mm 250mm
    59-252AD 0.02mm ±0.34mm 300mm
    59-252BA 0.05mm ±0.24mm 150mm
    59-252BB 0.05mm ±0.24mm 200mm
    59-252BC 0.05mm ±0.30mm 250mm
    59-252BD 0.05mm ±0.37mm 300mm
0-3000mm 20-3000mm 59-302AA 0.02mm ±0.26mm 150mm
    59-302AB 0.02mm ±0.26mm 200mm
    59-302AC 0.02mm ±0.35mm 250mm
    59-302AD 0.02mm ±0.35mm 300mm
    59-302BA 0.05mm ±0.31mm 150mm
    59-302BB 0.05mm ±0.31mm 200mm
    59-302BC 0.05mm ±0.37mm 250mm
    59-302BD 0.05mm ±0.37mm 300mm
0-4000mm 20-4000mm 59-402AA 0.02mm ±0.34mm 200mm
    59-402AB 0.02mm ±0.38mm 250mm
    59-402AC 0.02mm ±0.40mm 300mm
    59-402BA 0.05mm ±0.40mm 200mm
    59-402BB 0.05mm ±0.45mm 250mm
    59-402BC 0.05mm ±0.50mm 300mm
