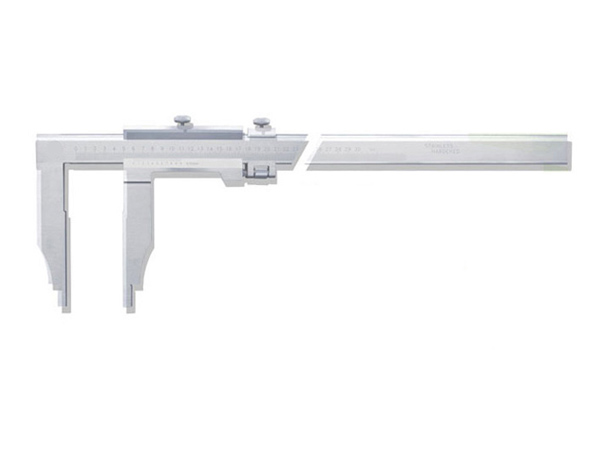

Vernier Calipers (Type IV , Monoblock Vernier ) |
|
Feature
Monoblock vernier won’t be budged when bumped, therefore its reading is always reliable.
The radiused measuring faces are fit for accurate inside measurement.
Long jaws for measuring hard-to-reach portions.
Can measure outside diameter (O.D), inside diameter (I.D), and steps.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy.
With fine adjustment |
Technology Parameter
| Measuring Range |
Code |
Vernier Reading |
Permissible Error |
Jaw Length |
| O.D
| I.D |
| 0-300mm |
10-300mm |
61-301AA |
0.02mm |
±0.04mm |
65mm |
| |
|
61-301AB |
0.02mm |
±0.04mm |
90mm |
| |
20-300mm |
61-301AC |
0.02mm |
±0.04mm |
125mm |
| |
|
61-301AD |
0.02mm |
±0.04mm |
150mm |
| |
10-300mm |
61-301BA |
0.05mm |
±0.06mm |
65mm |
| |
|
61-301BB |
0.05mm |
±0.08mm |
90mm |
| |
20-300mm |
61-301BC |
0.05mm |
±0.08mm |
125mm |
| |
|
61-301BD |
0.05mm |
±0.08mm |
150mm |
| 0-400mm |
20-400mm |
61-401AA |
0.02mm |
±0.05mm |
100mm |
| |
|
61-401AB |
0.02mm |
±0.05mm |
125mm |
| |
|
61-401AC |
0.02mm |
±0.05mm |
150mm |
| |
|
61-401AD |
0.02mm |
±0.05mm |
200mm |
| |
|
61-401BA |
0.05mm |
±0.07mm |
100mm |
| |
|
61-401BB |
0.05mm |
±0.08mm |
125mm |
| |
|
61-401BC |
0.05mm |
±0.08mm |
150mm |
| |
|
61-401BD |
0.05mm |
±0.08mm |
200mm |
| 0-500mm |
20-500mm |
61-501AA |
0.02mm |
±0.05mm |
100mm |
| |
|
61-501AB |
0.02mm |
±0.08mm |
150mm |
| |
|
61-501AC |
0.02mm |
±0.09mm |
200mm |
| |
|
61-501AD |
0.02mm |
±0.11mm |
250mm |
| |
|
61-501BA |
0.05mm |
±0.07mm |
100mm |
| |
|
61-501BB |
0.05mm |
±0.10mm |
150mm |
| |
|
61-501BC |
0.05mm |
±0.12mm |
200mm |
| |
|
61-501BD |
0.05mm |
±0.13mm |
250mm |
| 0-600mm |
20-600mm |
61-601AA |
0.02mm |
±0.05mm |
100mm |
| |
|
61-601AB |
0.02mm |
±0.10mm |
150mm |
| |
|
61-601AC |
0.02mm |
±0.12mm |
200mm |
| |
|
61-601AD |
0.02mm |
±0.13mm |
250mm |
| |
|
61-601AE |
0.02mm |
±0.15mm |
300mm |
| |
|
61-601BA |
0.05mm |
±0.08mm |
100mm |
| |
|
61-601BB |
0.05mm |
±0.13mm |
150mm |
| |
|
61-601BC |
0.05mm |
±0.14mm |
200mm |
| |
|
61-601BD |
0.05mm |
±0.15mm |
250mm |
| |
|
61-601BE |
0.05mm |
±0.17mm |
300mm |
| 0-800mm |
20-800mm |
61-801AA |
0.02mm |
±0.07 |
150mm |
| |
|
61-801AB |
0.02mm |
±0.11 |
200mm |
| |
|
61-801AC |
0.02mm |
±0.13 |
250mm |
| |
|
61-801AD |
0.02mm |
±0.15 |
300mm |
| |
|
61-801BA |
0.05mm |
±0.10 |
150mm |
| |
|
61-801BB |
0.05mm |
±0.12 |
200mm |
| |
|
61-801BC |
0.05mm |
±0.14 |
250mm |
| |
|
61-801BD |
0.05mm |
±0.16 |
300mm |
| 0-1000mm |
20-1000mm |
61-102AA |
0.02mm |
±0.07mm |
150mm |
| |
|
61-102AB |
0.02mm |
±0.11mm |
200mm |
| |
|
61-102AC |
0.02mm |
±0.13mm |
250mm |
| |
|
61-102AD |
0.02mm |
±0.16mm |
300mm |
| |
|
61-102BA |
0.05mm |
±0.14mm |
150mm |
| |
|
61-102BB |
0.05mm |
±0.17mm |
200mm |
| |
|
61-102BC |
0.05mm |
±0.20mm |
250mm |
| |
|
61-102BD |
0.05mm |
±0.23mm |
300mm |
| 0-1500mm |
20-1500mm |
61-152AA |
0.02mm |
±0.11mm |
150mm |
| |
|
61-152AB |
0.02mm |
±0.13mm |
200mm |
| |
|
61-152AC |
0.02mm |
±0.16mm |
250mm |
| |
|
61-152AD |
0.02mm |
±0.19mm |
300mm |
| |
|
61-152BA |
0.05mm |
±0.16mm |
150mm |
| |
|
61-152BB |
0.05mm |
±0.18mm |
200mm |
| |
|
61-152BC |
0.05mm |
±0.21mm |
250mm |
| |
|
61-152BD |
0.05mm |
±0.24mm |
300mm |
| 0-2000mm |
20-2000mm |
61-202AA |
0.02mm |
±0.14mm |
150mm |
| |
|
61-202AB |
0.02mm |
±0.14mm |
200mm |
| |
|
61-202AC |
0.02mm |
±0.20mm |
250mm |
| |
|
61-202AD |
0.02mm |
±0.20mm |
300mm |
| |
|
61-202BA |
0.05mm |
±0.20mm |
150mm |
| |
|
61-202BB |
0.05mm |
±0.20mm |
200mm |
| |
|
61-202BC |
0.05mm |
±0.26mm |
250mm |
| |
|
61-202BD |
0.05mm |
±0.29mm |
300mm |
| 0-2500mm |
20-2500mm |
61-252AA |
0.02mm |
±0.22mm |
150mm |
| |
|
61-252AB |
0.02mm |
±0.22mm |
200mm |
| |
|
61-252AC |
0.02mm |
±0.30mm |
250mm |
| |
|
61-252AD |
0.02mm |
±0.30mm |
300mm |
| |
|
61-252BA |
0.05mm |
±0.24mm |
150mm |
| |
|
61-252BB |
0.05mm |
±0.24mm |
200mm |
| |
|
61-252BC |
0.05mm |
±0.30mm |
250mm |
| |
|
61-252BD |
0.05mm |
±0.30mm |
300mm |
| 0-3000mm |
20-3000mm |
61-302AA |
0.02mm |
±0.26mm |
150mm |
| |
|
61-302AB |
0.02mm |
±0.26mm |
200mm |
| |
|
61-302AC |
0.02mm |
±0.35mm |
250mm |
| |
|
61-302AD |
0.02mm |
±0.35mm |
300mm |
| |
|
61-302BA |
0.05mm |
±0.31mm |
150mm |
| |
|
61-302BB |
0.05mm |
±0.31mm |
200mm |
| |
|
61-302BC |
0.05mm |
±0.37mm |
250mm |
| |
|
61-302BD |
0.05mm |
±0.39mm |
300mm |
| 0-4000mm |
20-4000mm |
61-402AA |
0.02mm |
±0.34mm |
200mm |
| |
|
61-402AB |
0.02mm |
±0.34mm |
250mm |
| |
|
61-402AC |
0.02mm |
±0.39mm |
300mm |
| |
|
61-402BA |
0.05mm |
±0.40mm |
200mm |
| |
|
61-402BB |
0.05mm |
±0.45mm |
250mm |
| |
|
61-402BC |
0.05mm |
±0.49mm |
300mm | |
|
