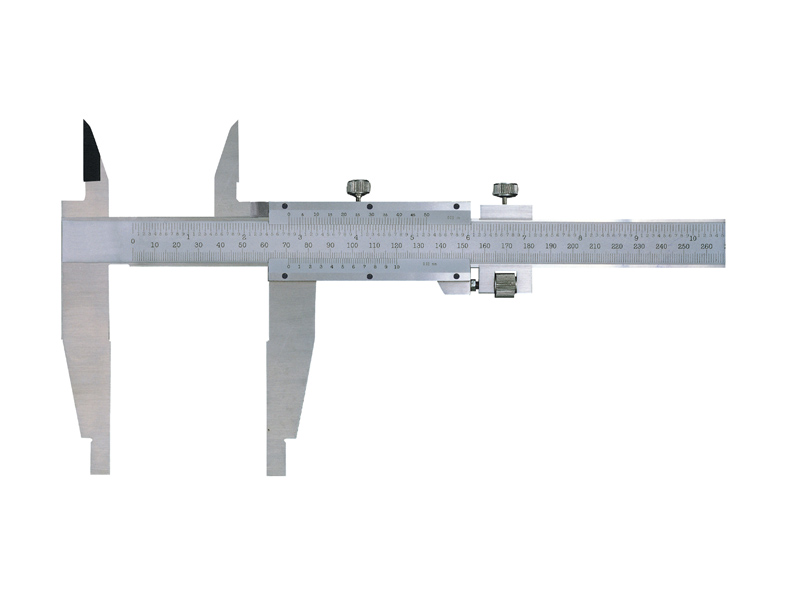

Vernier Calipers ( Type V, Screwed Vernier )
Feature
Inside readings can be read directly from the indicated reading when measuring the inside diameter with upper jaws,
Do not need to add the nib width to the indicated reading.
The radiused measuring faces are fit for accurate inside measurement.
Long jaws for measuring hard-to-reach portions.
With fine adjustment , but without depth bar.
Can measure outside diameter (O.D), inside diameter (I.D), and steps.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy.
Technology Parameter
Measuring Range Code Vernier Reading Permissible Error Jaw Length
O.D I.D
0-300mm 10-300mm 64-301AA 0.02mm ±0.04mm 60mm
    64-301AB 0.02mm ±0.06mm 90mm
  20-300mm 64-301AC 0.02mm ±0.08mm 100mm
    64-301AD 0.02mm ±0.09mm 125mm
  10-300mm 64-301BA 0.05mm ±0.06mm 60mm
    64-301BB 0.05mm ±0.10mm 90mm
  20-300mm 64-301BC 0.05mm ±0.11mm 100mm
    64-301BD 0.05mm ±0.12mm 125mm
0-400mm 20-400mm 64-401AA 0.02mm ±0.05mm 100mm
    64-401AB 0.02mm ±0.07mm 125mm
    64-401AC 0.02mm ±0.09mm 150mm
    64-401BA 0.05mm ±0.07mm 100mm
    64-401BB 0.05mm ±0.09mm 125mm
    64-401BC 0.05mm ±0.10mm 150mm
0-500mm 20-500mm 64-501AA 0.02mm ±0.05mm 100mm
    64-501AB 0.02mm ±0.08mm 150mm
    64-501AC 0.02mm ±0.10mm 200mm
    64-501BA 0.05mm ±0.07mm 100mm
    64-501BB 0.05mm ±0.10mm 150mm
    64-501BC 0.05mm ±0.12mm 200mm
0-600mm 20-600mm 64-601AA 0.02mm ±0.05mm 100mm
    64-601AB 0.02mm ±0.10mm 150mm
    64-601AC 0.02mm ±0.12mm 200mm
    64-601BA 0.05mm ±0.08mm 100mm
    64-601BB 0.05mm ±0.13mm 150mm
    64-601BC 0.05mm ±0.14mm 200mm
0-800mm 20-800mm 64-801AA 0.02mm ±0.06mm 150mm
    64-801AB 0.02mm ±0.11mm 200mm
    64-801AC 0.02mm ±0.12mm 250mm
    64-801BA 0.05mm ±0.09mm 150mm
    64-801BB 0.05mm ±0.14mm 200mm
    64-801BC 0.05mm ±0.15mm 250mm
0-1000mm 20-1000mm 64-102AA 0.02mm ±0.07mm 150mm
    64-102AB 0.02mm ±0.07mm 200mm
    64-102AC 0.02mm ±0.11mm 250mm
    64-102AD 0.02mm ±0.11mm 300mm
    64-102BA 0.05mm ±0.10mm 150mm
    64-102BB 0.05mm ±0.10mm 200mm
    64-102BC 0.05mm ±0.14mm 250mm
    64-102BD 0.05mm ±0.14mm 300mm
0-1500mm 20-1500mm 64-152AA 0.02mm ±0.11mm 150mm
    64-152AB 0.02mm ±0.11mm 200mm
    64-152AC 0.02mm ±0.13mm 250mm
    64-152AD 0.02mm ±0.13mm 300mm
    64-152BA 0.05mm ±0.16mm 150mm
    64-152BB 0.05mm ±0.16mm 200mm
    64-152BC 0.05mm ±0.18mm 250mm
    64-152BD 0.05mm ±0.18mm 300mm
0-2000mm 20-2000mm 64-202AA 0.02mm ±0.14mm 150mm
    64-202AB 0.02mm ±0.14mm 200mm
    64-202AC 0.02mm ±0.20mm 250mm
    64-202AD 0.02mm ±0.20mm 300mm
    64-202BA 0.05mm ±0.20mm 150mm
    64-202BB 0.05mm ±0.20mm 200mm
    64-202BC 0.05mm ±0.26mm 250mm
    64-202BD 0.05mm ±0.26mm 300mm
0-2500mm 20-2500mm 64-252AA 0.02mm ±0.22mm 150mm
    64-252AB 0.02mm ±0.22mm 200mm
    64-252AC 0.02mm ±0.30mm 250mm
    64-252AD 0.02mm ±0.30mm 300mm
    64-252BA 0.05mm ±0.24mm 150mm
    64-252BB 0.05mm ±0.24mm 200mm
    64-252BC 0.05mm ±0.30mm 250mm
    64-252BD 0.05mm ±0.30mm 300mm
0-3000mm 20-3000mm 64-302AA 0.02mm ±0.26mm 150mm
    64-302AB 0.02mm ±0.26mm 200mm
    64-302AC 0.02mm ±0.35mm 250mm
    64-302AD 0.02mm ±0.35mm 300mm
    64-302BA 0.05mm ±0.31mm 150mm
    64-302BB 0.05mm ±0.31mm 200mm
    64-302BC 0.05mm ±0.35mm 250mm
    64-302BD 0.05mm ±0.35mm 300mm
