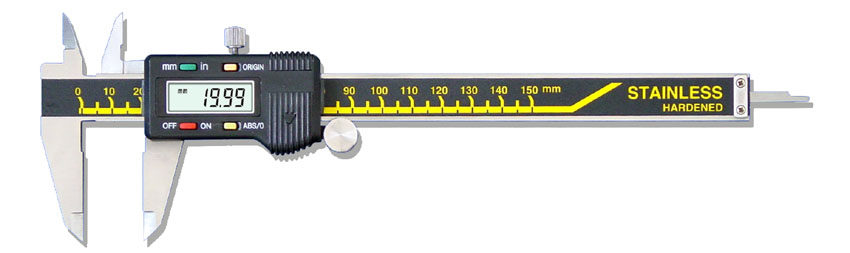

Four-key Digital Calipers
Feature
Power on/off.
Zero-setting at any position.
Units conversion.
Data output.
MODE
Data hold.
Speedy display mode (during which data can be hold.)
Fast tracing MAX / MIN value during measurement.
TOL
Tolerance setting and OK(GO)or ±NG discrimination.
HOLD
Data hold.
ABS
Absolute and incremental measurement mode switching.
Technology Parameter
Measuring Range mm/in Order No Resolution mm/in Permissible Error Remarks
0-150mm（0-6″）
 94-151 0.01mm（.0005″ ） ±0.03mm With depth bar(flat or roundφ1.6)
0-200mm（0-8″）
 94-201 0.01mm（.0005″ ） ±0.03mm
0-300mm（0-12″）
94-301 0.01mm（.0005″ ） ±0.04mm With depth bar
