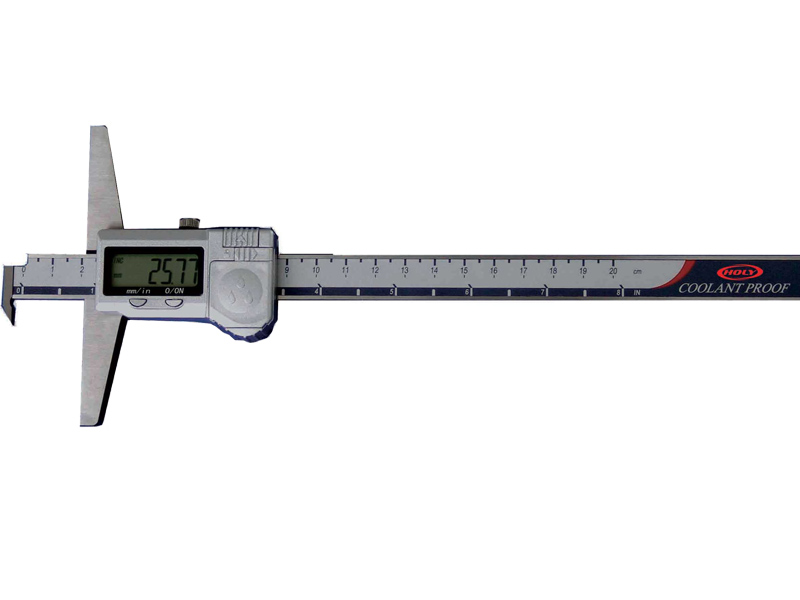

IP67 Waterproof Digital Depth Gauge

Feature
It is used for depth measurement. It can measure groove width and position dimension of a groove.


Waterproof, oil proof, anti-electromagnetic interference, antistatic, protection Level IP67 (CEI 60529)
Two-button design, menu prompt, simple, convenient and easy to operate
?Manual / automatic power switch ,automatic shutdown after 5 minutes without being used (Note:Some models will automatically reboot at a 16-hour shutdown when the slider is moved. )
?Low-voltage alarm, high and low temperature, and other error alarm .
?Infinite response speed, no speed error.
?ABS / INC mode and metric / inch units conversion
?Battery : 3V lithium battery (CR2032)
?Battery life:Approx. 2000 hours
?Packed in plastic box
Technology Parameter
Item No. Range Resolution A(mm) C(mm) Accuracy(mm)
23-151WPH 0-150mm/6" 0.01mm/0.0005" 102 16 ±0.03
23-201WPH 0-200mm/8" 0.01mm/0.0005" 102 16 ±0.03
23-301WPH 0-300mm/12" 0.01mm/0.0005" 102 16 ±0.04
23-501WPH 0-500mm/20" 0.01mm/0.0005" 102 17 ±0.05
