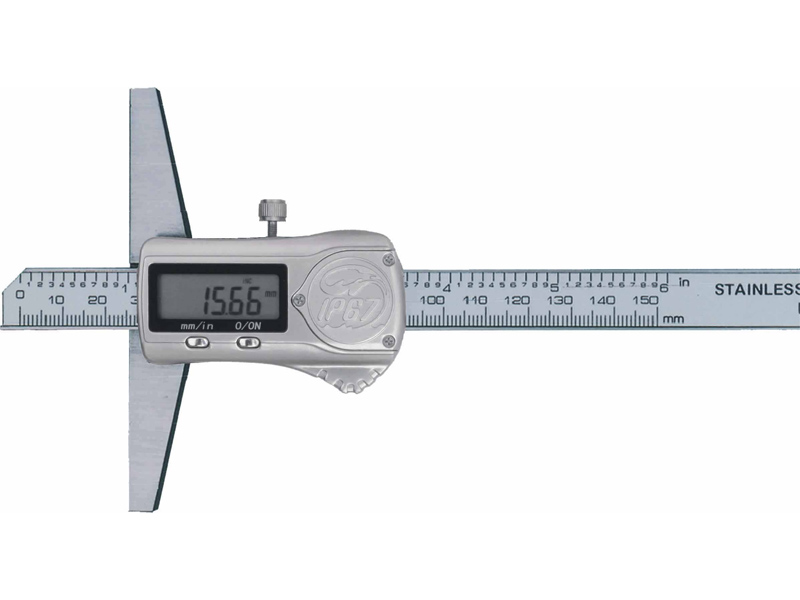

IP67 Waterproof Digital Depth Gauge

Feature
It is used for depth measurement. It can measure groove width and position dimension of a groove.


Waterproof, oil proof, anti-electromagnetic interference, antistatic, protection Level IP67 (CEI 60529)
Two-button design, menu prompt, simple, convenient and easy to operate
?Manual / automatic power switch ,automatic shutdown after 5 minutes without being used (Note:Some models will automatically reboot at a 16-hour shutdown when the slider is moved. )
?Low-voltage alarm, high and low temperature, and other error alarm .
?Infinite response speed, no speed error.
?ABS / INC mode and metric / inch units conversion
?Battery : 3V lithium battery (CR2032)
?Battery life:Approx. 2000 hours
?Packed in plastic box
Technology Parameter
Measuring Range Order No Resolution Accuracy A mm C mm
0-150mm(0-6″) 23-151WMH 0.01mm(.0005″) ±0.03mm 102/150 15.5
0-200mm(0-8″) 23-201WMH 0.01mm(.0005″) ±0.03mm 102/150 15.5
0-250mm(0-10″) 23-251WMH 0.01mm(.0005″) ±0.04mm 102/150 15.5
0-300mm(0-12″) 23-301WMH 0.01mm(.0005″) ±0.04mm 102/150 15.5
0-500mm(0-20″) 23-501WMH 0.01mm(.0005″) ±0.05mm 102/150 17
0-600mm(0-24″) 23-601WMH 0.01mm(.0005″) ±0.06mm 102/150 17
0-800mm(0-32″) 23-801WMH 0.01mm(.0005″) ±0.07mm 150 17
0-1000mm(0-40″) 23-102WMH 0.01mm(.0005″) ±0.07mm 150 18
