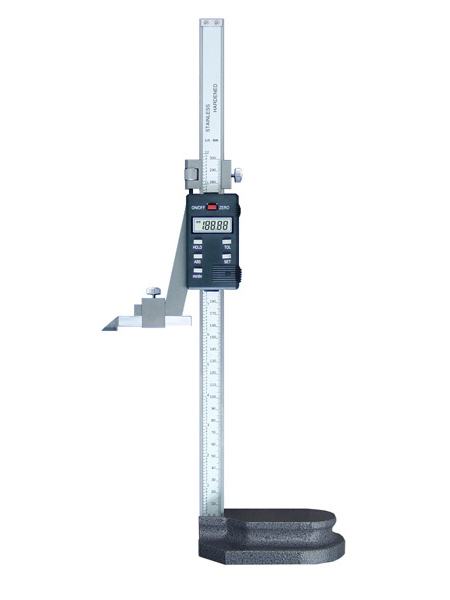

Digital Height Gauges
Feature
Manual power on/off
Zero setting at any position
Metric/Inch system interchange at any position
With carbide tipped scriber,it's easy for scribing
With display predetermination function
Can casily measure height of small workpieces.
The clear LCD screen.
The robust construction with a thick column provides highly repeatable measurement.
Fine-adjustment carriage to feed the slider finely.
Technology Parameter
Measuring Range Order No Resolution Permissible Error
0-300mm(0-12″) 21-301W 0.01mm/（.0005″） ±0.04mm
0-500mm/(0-20″) 21-501W 0.01mm/（.0005″） ±0.05mm
0-600mm/(0-24″) 21-601W 0.01mm/（.0005″） ±0.06mm
0-800mm/(0-32″) 21-801W 0.01mm/（.0005″） ±0.07mm
0-1000mm/(0-40″) 21-102W 0.01mm/（.0005″） ±0.07mm
0-1500mm/(0-60″) 21-152W 0.01mm/（.0005″） ±0.11mm
