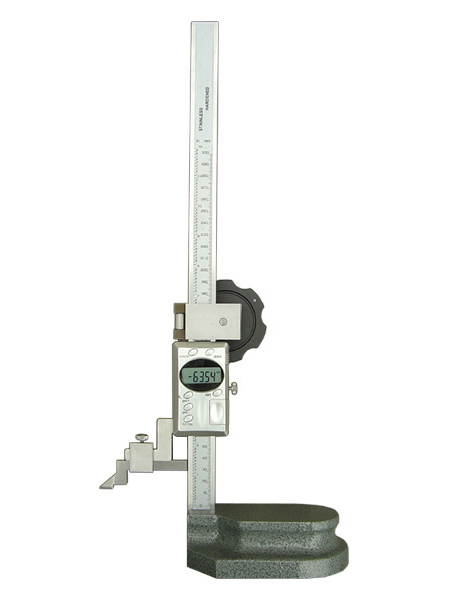

Digital Height Gauges
Feature
Power on/off
Zero-setting at any position
mm/inch conversion
Data output
With Presetting function
Carbide-tipped scriber
Can easily measure height of small workpiece
Clear LCD screen
The robust construction with a thick column provides highly repeatable measurement
Fine-adjustment carriage to feed the slider finely.
Can move the scriber up and down easily with the hand wheel.
Technology Parameter
Order No. Measuring Range Resolution Permissible Error
21-301WW 0-300mm(0-12″) 0.01mm/（.0005″） ±0.03mm
21-501WW 0-500mm(0-20″) 0.01mm/（.0005″） ±0.05mm
21-601WW 0-600mm/(0-24″) 0.01mm/（.0005″） ±0.07mm
21-801WW 0-800mm/(0-32″) 0.01mm/（.0005″） ±0.07mm
21-102WW 0-1000mm/(0-40″) 0.01mm/（.0005″） ±0.07mm
21-152WW 0-1500mm/(0-60″) 0.01mm/（.0005″） ±0.11mm
21-202WW 0-2000mm/(0-80″) 0.01mm/（.0005″） ±0.15mm
