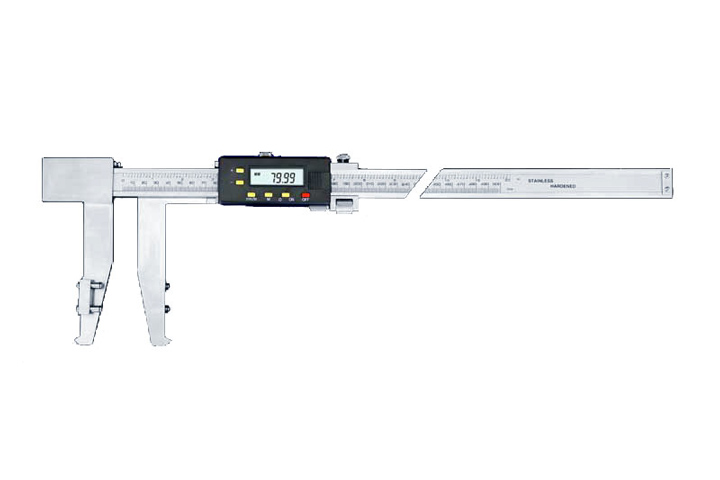

Digital Brake Drum Gages
Feature
Zero setting at any position
Metric/inch system conversion at any position.
With data output.
Used for measuring the wear dimension of the automobile brake drum.
Made of stainless steel.
Technology Parameter
Measuring Range mm/in Order No Resolution mm/in Permissible Error Remarks
20-300mm (8-12")
96-301BD 0.01mm (.0005") ±0.05mm
20-425mm (8-17.8"）
 96-421BD 0.01mm (.0005") ±0.05mm
20-500mm (8-20"）
96-501BD 0.01mm (.0005") ±0.06mm
