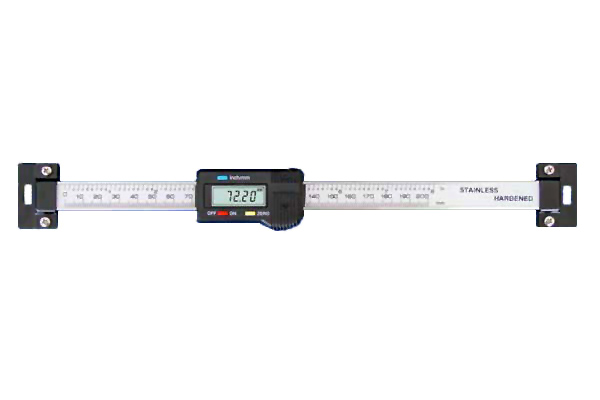

Digital Scale Units

Feature

Power on/off.
Metric/inch system interchange at any position.
Zero-setting at any position.
Data output.
Fast tracing of minimum or maximum value during measurements
With display holding function
With display predetermination function　

Technology Parameter

Measuring Range	Order No	Resolution	Permissible Error	A mm	B mm	C mm	D mm	E mm	F mm	G mm	L1 mm	L2 mm
100mm(4″)	47-101	0.01mm(.0005″)	±0.02mm	16	4	36	6	24	58	34	209	185
150mm(6″)	47-151	0.01mm(.0005″)	±0.03mm	16	4	36	6	24	58	34	259	235
200mm(8″)	47-201	0.01mm(.0005″)	±0.03mm	16	4	36	6	24	58	34	310	286
300mm(12″)	47-301	0.01mm(.0005″)	±0.04mm	16	4	36	6	24	58	34	444	420
400mm(16″)	47-401	0.01mm(.0005″)	±0.05mm	16	4	36	6	24	58	34	594	570
500mm(20″)	47-501	0.01mm(.0005″)	±0.05mm	24	5.5	45	8	32	92	40	682	650
600mm(24″)	47-601	0.01mm(.0005″)	±0.08mm	24	5.5	45	8	32	92	40	782	750
700mm(28″)	47-701	0.01mm(.0005″)	±0.08mm	24	5.5	45	8	32	92	40	882	850
800mm(32″)	47-801	0.01mm(.0005″)	±0.10mm	24	5.5	45	8	32	92	40	982	950
900mm(36″)	47-901	0.01mm(.0005″)	±0.10mm	24	5.5	45	8	32	92	40	1082	1050
1000mm(40″)	47-102	0.01mm(.0005″)	±0.10mm	31	10.5	60	10	40	124.5	54	1240	1200
1200mm(48″)	47-122	0.01mm(.0005″)	±0.12mm	31	10.5	60	10	40	124.5	54	1440	1400
1500mm(60″)	47-152	0.01mm(.0005″)	±0.14mm	31	10.5	60	10	40	124.5	54	1740	1700
2000mm(80″)	47-202	0.01mm(.0005″)	±0.20mm	31	10.5	60	10	40	124.5	54	2240	2200
