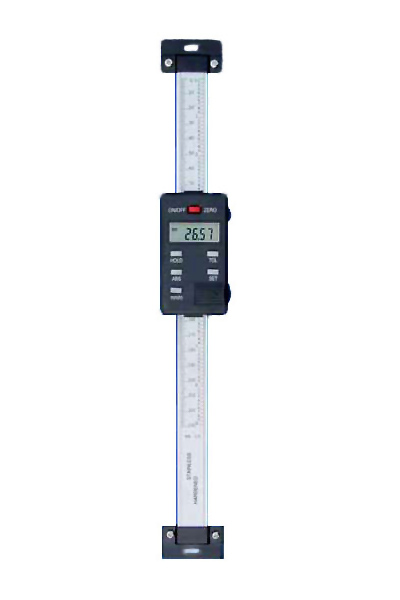

Digital Scale Units(Vertical Type)

Feature

Power on/off.
Zero-setting at any position.
Inch/mm conversion at any position.
Data output.
Data hold.
Presetting.
Come with two mounting brackets,each located at either end of the scale.

Technology Parameter

Measuring Range	Order No	Resolution	Permissible Error	A mm	B mm	C mm	D mm	E mm	F mm	G mm	L1 mm	L2 mm
100mm(4″)	47-101V	0.01mm(.0005″)	±0.02mm	20	4	40	6	24	80	40	244	220
150mm(6″)	47-151V	0.01mm(.0005″)	±0.03mm	20	4	40	6	24	80	40	294	270
200mm(8″)	47-201V	0.01mm(.0005″)	±0.03mm	20	4	40	6	24	80	40	344	320
300mm(12″)	47-301V	0.01mm(.0005″)	±0.04mm	20	4	40	6	24	80	40	444	420
400mm(16″)	47-401V	0.01mm(.0005″)	±0.05mm	20	4	40	6	24	80	40	594	520
500mm(20″)	47-501V	0.01mm(.0005″)	±0.05mm	20	4/5.5	40/45	6/8	24/32	80/95	40/51	682	620
600mm(24″)	47-601V	0.01mm(.0005″)	±0.08mm	20	4/5.5	40/45	6/8	24/32	80/95	40/51	782	720
700mm(28″)	47-701V	0.01mm(.0005″)	±0.08mm	24	5.5	45	8	32	95	51	882	820
800mm(32″)	47-801V	0.01mm(.0005″)	±0.08mm	24	5.5	45	8	32	95	51	982	920
900mm(36″)	47-901V	0.01mm(.0005″)	±0.08mm	24	5.5	45	8	32	95	51	1082	1020
1000mm(40″)	47-102V	0.01mm(.0005″)	±0.10mm	31	10.5	60	10	40	95	51	1240	1200
1200mm(48″)	47-122V	0.01mm(.0005″)	±0.12mm	31	10.5	60	10	40	95	51	1440	1400
1500mm(60″)	47-152V	0.01mm(.0005″)	±0.12mm	31	10.5	60	10	40	95	51	1740	1700
2000mm(80″)	47-202V	0.01mm(.0005″)	±0.20mm	31	10.5	60	10	40	95	51	2240	2200
