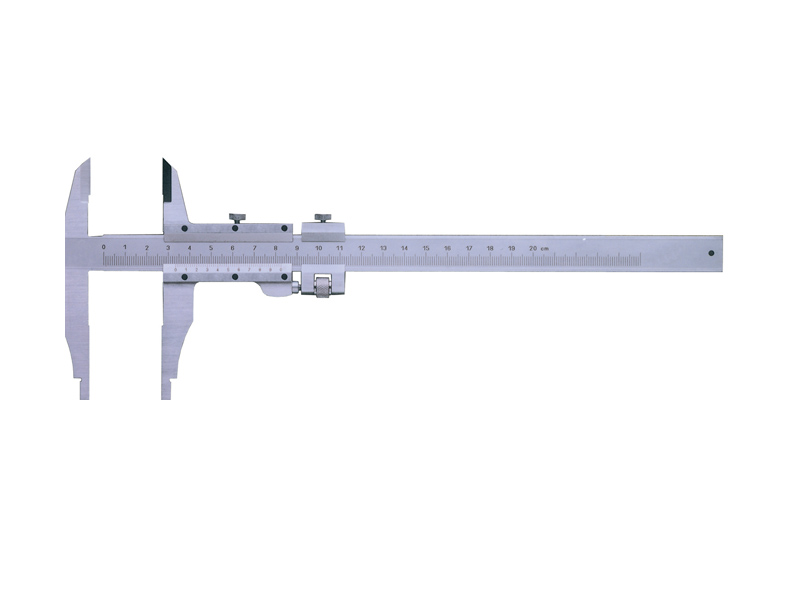

Vernier Calipers (Type III, Screwed Vernier )
Feature
Two types of outside jaws are fit for accurate outside measurement.
Knife edge and sharp upper jaws can scribe directly on the workpiece.
The radiused measuring faces are fit for accurate inside measurement.
Long jaws for measuring hard-to-reach portions.
With fine adjustment , but without depth bar.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy.
Technology Parameter
Measuring Range Code Vernier Reading Permissible Error Jaw Length
O.D I.D
0-300mm 10-300mm 60-301AA 0.02mm ±0.04mm 60mm
    60-301AB 0.02mm ±0.06mm 90mm
  20-300mm 60-301AC 0.02mm ±0.08mm 100mm
    60-301AD 0.02mm ±0.10mm 125mm
  10-300mm 60-301BA 0.05mm ±0.06mm 60mm
    60-301BB 0.05mm ±0.10mm 90mm
  20-300mm 60-301BC 0.05mm ±0.13mm 100mm
    60-301BD 0.05mm ±0.16mm 125mm
0-400mm 20-400mm 60-401AA 0.02mm ±0.05mm 100mm
    60-401AB 0.02mm ±0.05mm 125mm
    60-401AC 0.02mm ±0.08mm 150mm
    60-401BA 0.05mm ±0.07mm 100mm
    60-401BB 0.05mm ±0.07mm 125mm
    60-401BC 0.05mm ±0.10mm 150mm
0-500mm 20-500mm 60-501AA 0.02mm ±0.05mm 100mm
    60-501AB 0.02mm ±0.05mm 150mm
    60-501AC 0.02mm ±0.08mm 200mm
    60-501BA 0.05mm ±0.07mm 100mm
    60-501BB 0.05mm ±0.08mm 150mm
    60-501BC 0.05mm ±0.10mm 200mm
0-600mm 20-600mm 60-601AA 0.02mm ±0.05mm 100mm
    60-601AB 0.02mm ±0.10mm 150mm
    60-601AC 0.02mm ±0.14mm 200mm
    60-601BA 0.05mm ±0.08mm 100mm
    60-601BB 0.05mm ±0.13mm 150mm
    60-601BC 0.05mm ±0.16mm 200mm
0-800mm 20-800mm 60-801AA 0.02mm ±0.06mm 150mm
    60-801AB 0.02mm ±0.11mm 200mm
    60-801AC 0.02mm ±0.15mm 250mm
    60-801BA 0.05mm ±0.09mm 150mm
    60-801BB 0.05mm ±0.14mm 200mm
    60-801BC 0.05mm ±0.18mm 250mm
0-1000mm 20-1000mm 60-102AA 0.02mm ±0.07mm 150mm
    60-102AB 0.02mm ±0.11mm 200mm
    60-102AC 0.02mm ±0.18mm 250mm
    60-102AD 0.02mm ±0.24mm 300mm
    60-102BA 0.05mm ±0.10mm 150mm
    60-102BB 0.05mm ±0.14mm 200mm
    60-102BC 0.05mm ±0.20mm 250mm
    60-102BD 0.05mm ±0.26mm 300mm
0-1500mm 20-1500mm 60-152AA 0.02mm ±0.11mm 150mm
    60-152AB 0.02mm ±0.13mm 200mm
    60-152AC 0.02mm ±0.17mm 250mm
    60-152AD 0.02mm ±0.25mm 300mm
    60-152BA 0.05mm ±0.16mm 150mm
    60-152BB 0.05mm ±0.18mm 200mm
    60-152BC 0.05mm ±0.22mm 250mm
    60-152BD 0.05mm ±0.29mm 300mm
0-2000mm 20-2000mm 60-202AA 0.02mm ±0.14mm 150mm
    60-202AB 0.02mm ±0.14mm 200mm
    60-202AC 0.02mm ±0.20mm 250mm
    60-202AD 0.02mm ±0.30mm 300mm
    60-202BA 0.05mm ±0.20mm 150mm
    60-202BB 0.05mm ±0.20mm 200mm
    60-202BC 0.05mm ±0.26mm 250mm
    60-202BD 0.05mm ±0.36mm 300mm
0-2500mm 20-2500mm 60-252AA 0.02mm ±0.22mm 150mm
    60-252AB 0.02mm ±0.22mm 200mm
    60-252AC 0.02mm ±0.28mm 250mm
    60-252AD 0.02mm ±0.34mm 300mm
    60-252BA 0.05mm ±0.24mm 150mm
    60-252BB 0.05mm ±0.24mm 200mm
    60-252BC 0.05mm ±0.30mm 250mm
    60-252BD 0.05mm ±0.37mm 300mm
0-3000mm 20-3000mm 60-302AA 0.02mm ±0.26mm 150mm
    60-302AB 0.02mm ±0.26mm 200mm
    60-302AC 0.02mm ±0.35mm 250mm
    60-302AD 0.02mm ±0.35mm 300mm
    60-302BA 0.05mm ±0.31mm 150mm
    60-302BB 0.05mm ±0.31mm 200mm
    60-302BC 0.05mm ±0.37mm 250mm
    60-302BD 0.05mm ±0.37mm 300mm
0-4000mm 20-4000mm 60-402AA 0.02mm ±0.34mm 200mm
    60-402AB 0.02mm ±0.38mm 250mm
    60-402AC 0.02mm ±0.40mm 300mm
    60-402BA 0.05mm ±0.40mm 200mm
    60-402BB 0.05mm ±0.45mm 250mm
    60-402BC 0.05mm ±0.50mm 300mm
