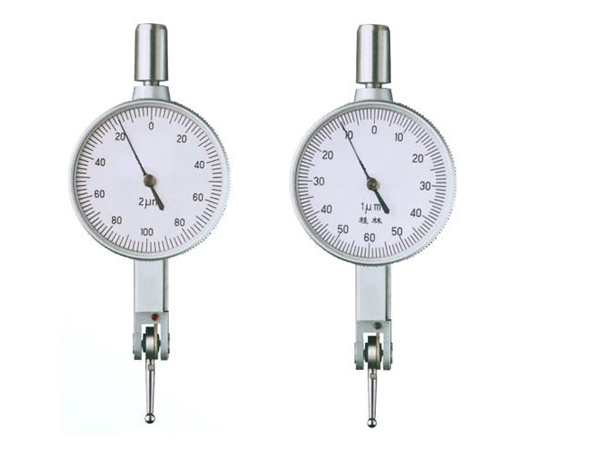

Micron Dial Test Indicator
Feature
Used for more accurate measurement
To measure errors and relative position deviations of geometric shapes.
Technology Parameter
Code Range (mm) Grad. (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Φ (mm) d (mm) Accuracy (mm)
40-201 0-0.2mm 0.002 24 17.3 16.5 Φ38.4 42.7 38.7 15 2.5 4 / 8 3μm
40-121 0-0.12mm 0.001 24 17.3 16.5 Φ38.4 42.7 38.7 12.5 2.5 4 / 8 3μm
