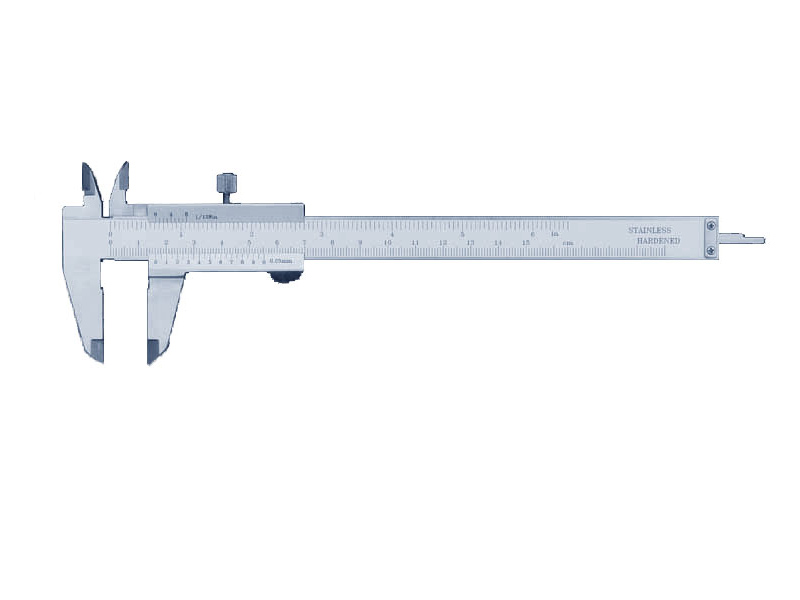

Vernier Calipers (Type I, Mono-block Vernier)
Feature
Traditional measuring tool with good durability.
Can measure outside diameter (O.D), inside diameter (I.D), depth and steps.
Stainless steel, hardened throughout. Satin chrome finished vernier and main scale with jet black graduations for
glare free reading. All graduations are marked by laser machine for accuracy.
With depth measuring bar
Technology Parameter
Measuring Range Order No. Vernier reading Permissible Error Remarks
0-150mm 55-151A 0.02mm ±0.03mm With depth bar
0-200mm 55-201A 0.02mm ±0.03mm
0-300mm 55-301A 0.02mm ±0.04mm
0-150mm 55-151B 0.05mm ±0.05mm
0-200mm 55-201B 0.05mm ±0.05mm
0-300mm 55-301B 0.05mm ±0.06mm
0-150mm 55-151AA 0.02/.001” ±0.03mm
0-200mm 55-201AA 0.02/.001” ±0.03mm
0-300mm 55-301AA 0.02/.001” ±0.04mm
0-150mm 55-151BB 0.05/1/128” ±0.05mm
0-200mm 55-201BB 0.05/1/128” ±0.05mm
0-300mm 55-301BB 0.05/1/128” ±0.06mm
