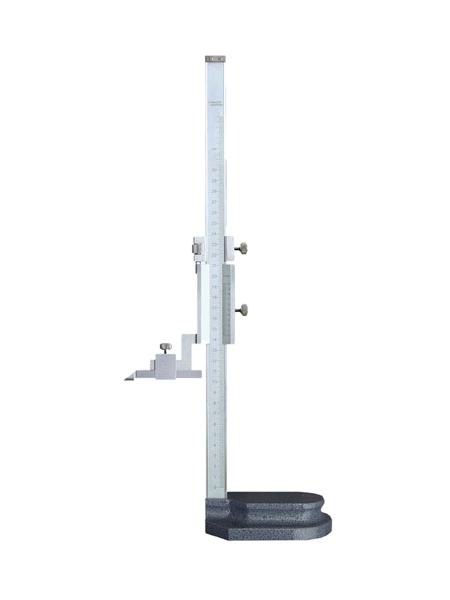

Vernier Height Gages
Feature
Carbide-tipped scriber facilitates fine scribing on workpieces.
Fine-adjustment carriage to feed the slider finely.
Made of stainless steel.
Technology Parameter
Measuring Range Order No. Vernier reading Permissible Error
0-200mm 21-201VMA 0.02mm ±0.03mm
0-200mm 21-201VMB 0.05mm ±0.05mm
0-250mm 21-251VMA 0.02mm ±0.04mm
0-250mm 21-251VMB 0.05mm ±0.08mm
0-300mm 21-301VMA 0.02mm ±0.04mm
0-300mm 21-301VMB 0.05mm ±0.08mm
0-400mm 21-401VMA 0.02mm ±0.05mm
0-400mm 21-401VMB 0.05mm ±0.08mm
0-500mm 21-501VMA 0.02mm ±0.05mm
0-500mm 21-501VMB 0.05mm ±0.08mm
0-600mm 21-601VMA 0.02mm ±0.07mm
0-600mm 21-601VMB 0.05mm ±0.10mm
0-800mm 21-801VMA 0.02mm ±0.07mm
0-800mm 21-801VMB 0.05mm ±0.10mm
0-1000mm 21-102VMA 0.02mm ±0.07mm
0-1000mm 21-102VMB 0.05mm ±0.10mm
0-1500mm 21-152VMA 0.02mm ±0.10mm
0-1500mm 21-152VMB 0.05mm ±0.15mm
0-2000mm 21-202VMA 0.02mm ±0.14mm
0-2000mm 21-202VMB 0.05mm ±0.20mm
