You are here: Home > Showroom > Dial Calipers

Dial Calipers
Feature
Shockproof .
Clear and direct reading.
Can measure outside diameter (O.D), inside diameter (I.D), depth and steps.
Made of stainless steel.
Technology Parameter

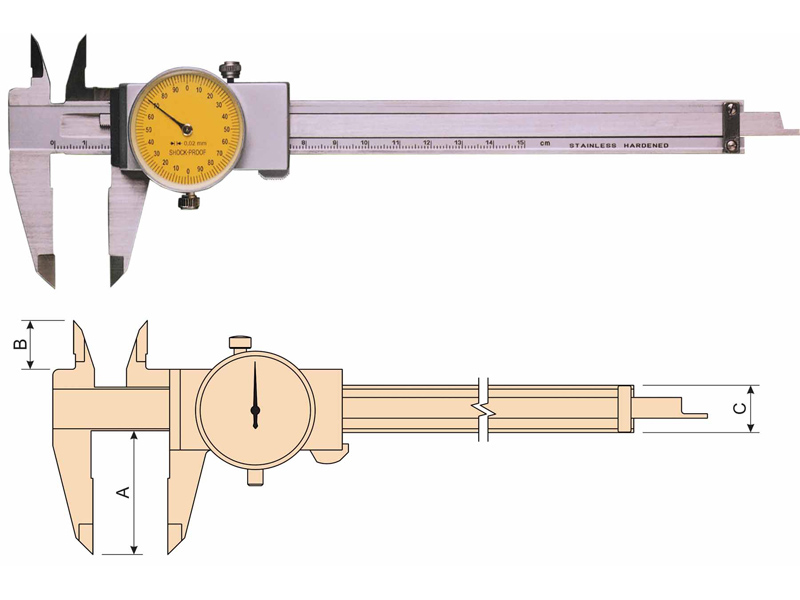

Code Range Grad. A(mm) B(mm) C(mm) Accuracy(mm)
06-151A 0-150mm 0.02mm 17 40 16 ±0.03
06-201A 0-200mm 0.02mm 20.5 50 16 ±0.03
06-301A 0-300mm 0.02mm 20.5 50 16 ±0.04
06-151B 0-150mm 0.01mm 17 40 16 ±0.03
06-201B 0-200mm 0.01mm 20.5 50 16 ±0.03
06-301B 0-300mm 0.01mm 20.5 50 16 ±0.04
06-151C 0-6″ 0.001″ 17 40 16 ±0.0012″
06-201C 0-8″ 0.001″ 20.5 50 16 ±0.0012″
06-301C 0-12″ 0.001″ 20.5 50 16 ±0.0015″
