Dial Calipers
Feature
Shockproof .
Clear and direct reading.
Can measure outside diameter (O.D), inside diameter (I.D), depth and steps.
Made of stainless steel.
Technology Parameter

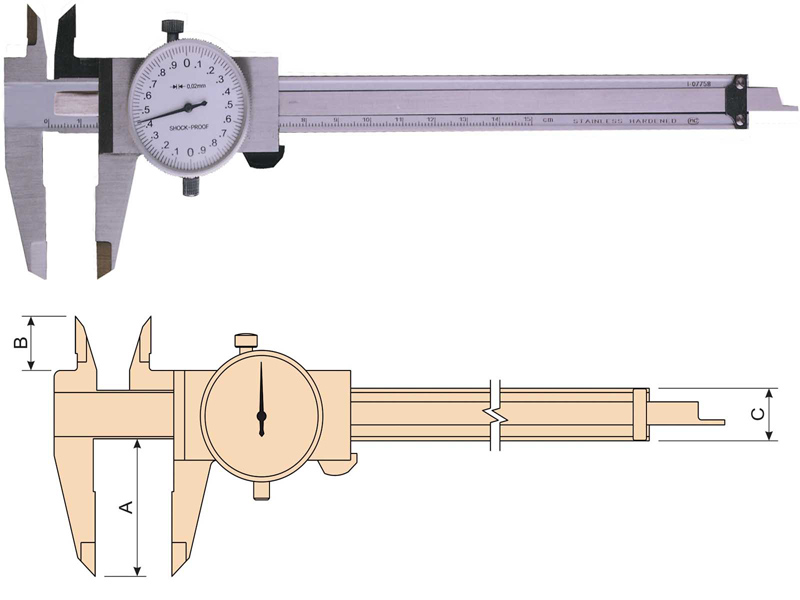

Code Range Grad. A(mm) B(mm) C(mm) Accuracy(mm)
07-151A 0-150mm 0.02mm 16 40 15.5 ±0.03
07-201A 0-200mm 0.02mm 18.5 55 17 ±0.03
07-301A 0-300mm 0.02mm 18.5 55 17 ±0.04
07-151B 0-150mm 0.01mm 16 40 15.5 ±0.03
07-201B 0-200mm 0.01mm 18.5 55 17 ±0.03
07-301B 0-300mm 0.01mm 18.5 55 17 ±0.04
07-151C 0-6″ 0.001″ 16 40 15.5 ±0.0012″
07-201C 0-8″ 0.001″ 18.5 55 17 ±0.0012″
07-301C 0-12″ 0.001″ 18.5 55 17 ±0.0015″
